01

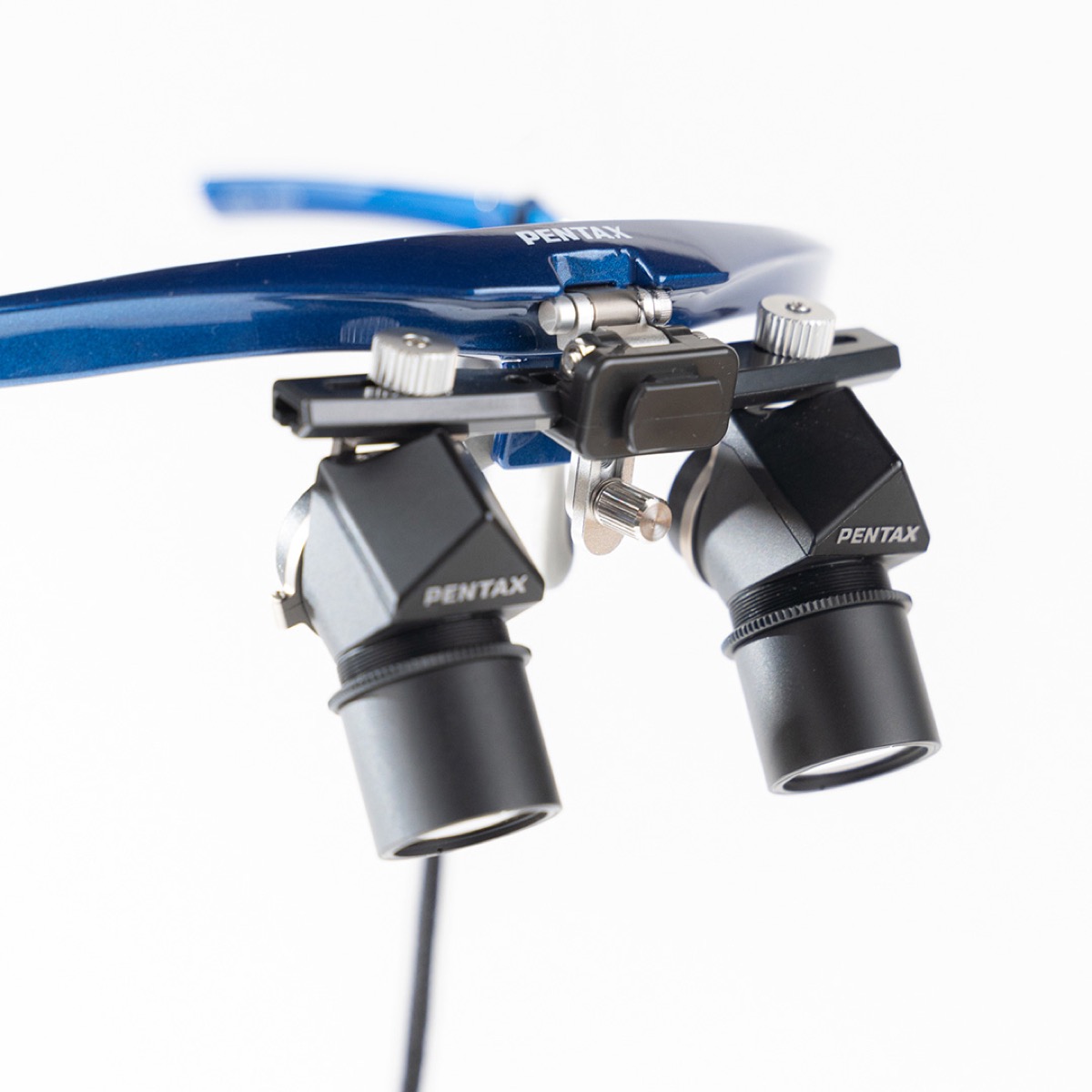

Pupillary distance
Each barrel moves independently so the optics sit exactly over your eyes. A double image or one soft edge usually means this needs a nudge.
Adjustable 52–78 mm
Loupe passport
Loupe passport
This passport isn't available
The link may have been copied incorrectly, or the passport has been closed. If you think it should be open, contact the UK team.
Your loupe passport
Hello,
Your PENTAX Loupes, your setup and your UK support team, all in one place. Keep this link: it stays yours for as long as you wear them.

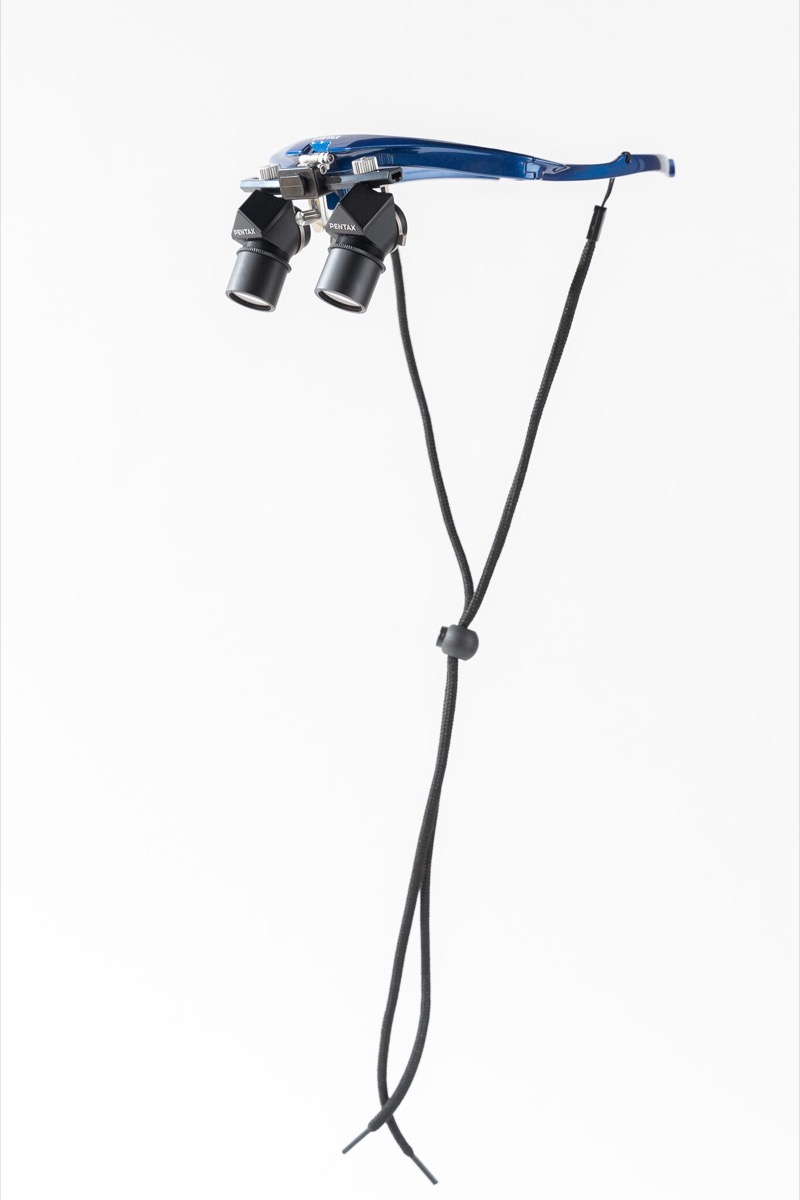

PENTAX Loupes
Your setup
Built to your numbers
Pupillary distance and working distance are adjustable, and can be reset whenever your eyesight or posture changes. Magnification is fixed at manufacture.
A quick check-in
How are your loupes feeling?
One tap tells us whether everything is comfortable, or whether a small adjustment would help. It takes ten seconds and reaches a real person.
Care
Look after the optics and they'll look after you
Precision optics stay sharp for years with a light routine. Four habits worth keeping.
01
Clean the lenses gently
Blow or brush away grit first, then use a clean microfibre cloth. A little lens-cleaning solution on the cloth is fine; never spray the loupes directly, and keep solvents and abrasive wipes away from the optics.
02
Wipe the frame after each session
A damp microfibre cloth lifts skin oils and debris from the frame, nose pad and head strap. Keep the barrels and hinge dry, and never submerge or autoclave the loupes.
03
Handle by the frame, not the barrels
Lift the loupes by the frame and use the flip-up hinge to move the barrels. Set them down optics-up on a soft surface, never resting on the lenses.
04
Store them in the case
Between sessions the case protects the optics and the adjustments made at your fitting. Keep an LED headlight and its battery out of direct heat.
The printed care leaflet supplied with your loupes is the reference for your model. Unsure about a cleaning product? Ask us before using it.
Fitting
Four adjustments, set to you
These were set at your fitting. If your posture, chair or eyesight changes they can be reset: small tweaks by you, anything bigger at a fitting check with us.
02

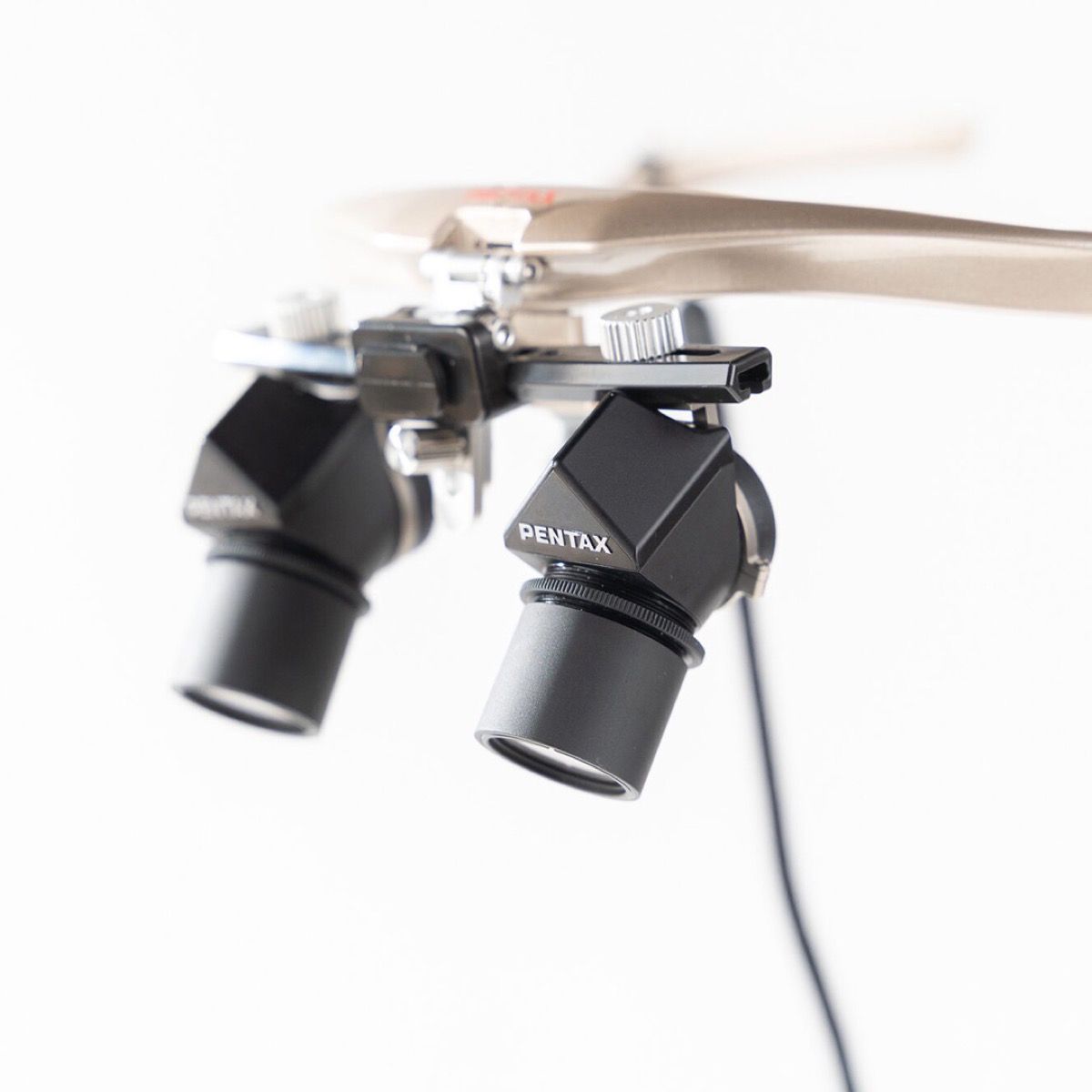

Working distance
Sets how far from your eyes the image is sharp. Yours matches the way you sit or stand at work; change your setup and it can follow.
Adjustable 25–70 cm
03

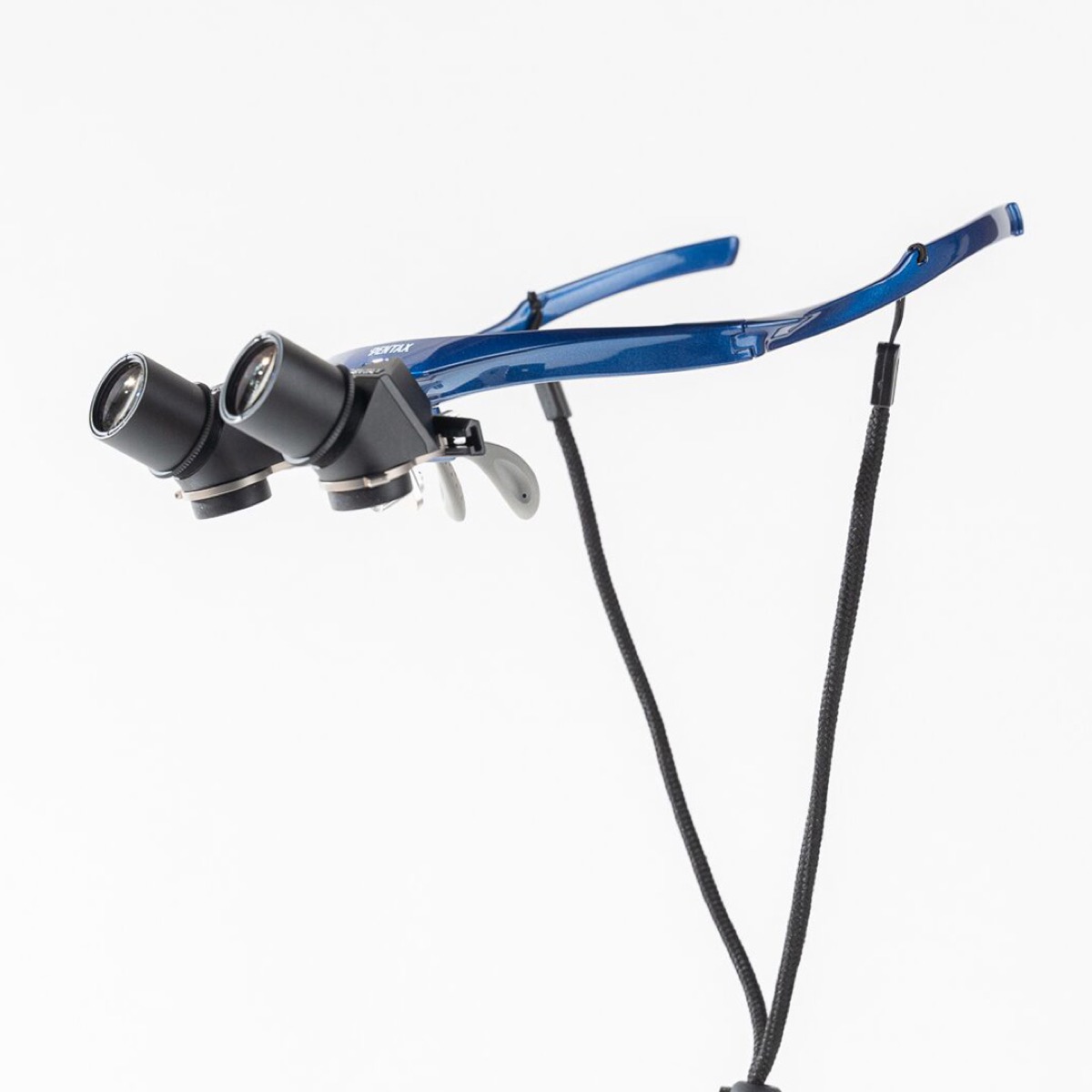

Height and angle
The knurled adjusters raise, lower and tilt the barrels so you look through the centre of the optics with your head level and your eyes relaxed.
Lock in, then forget
04

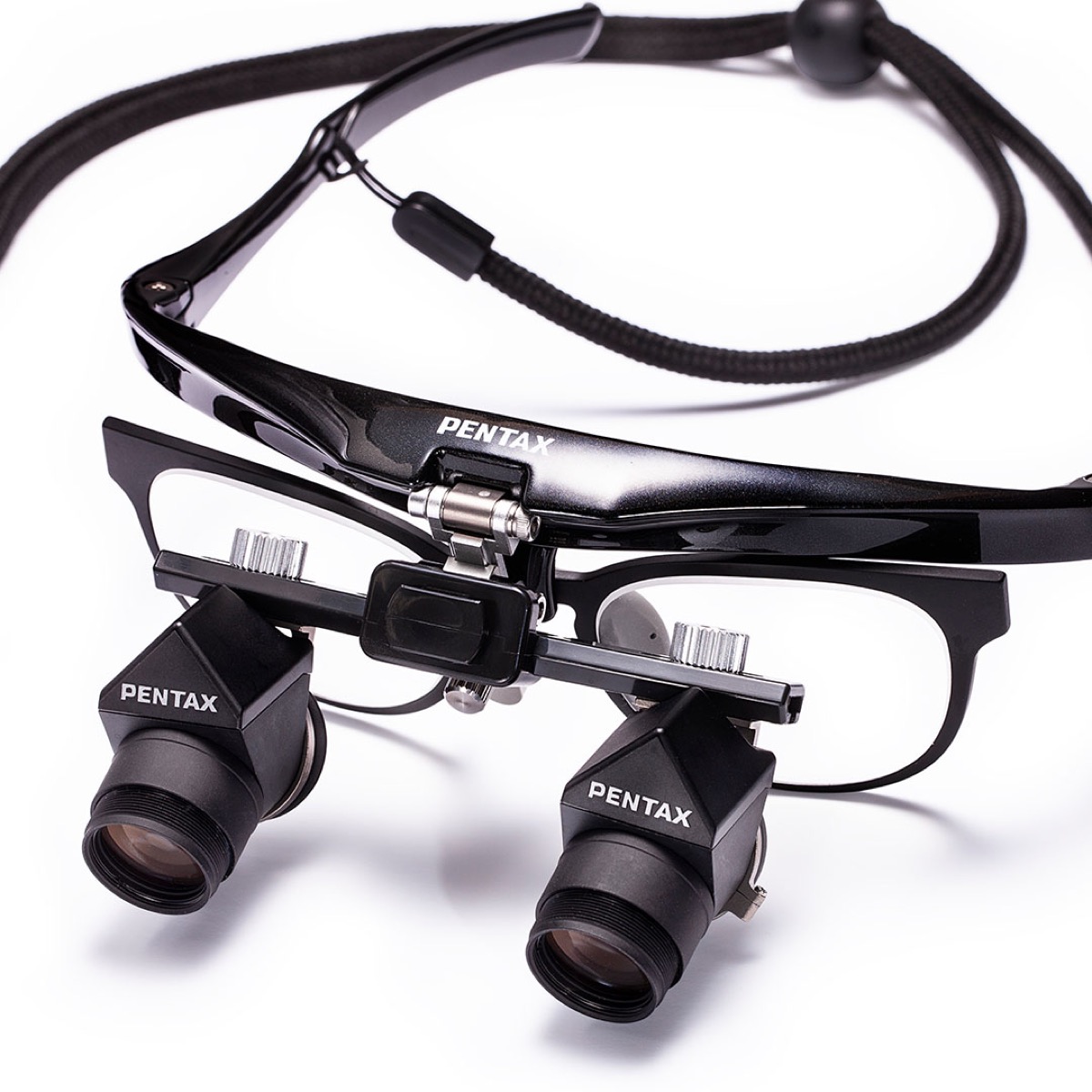

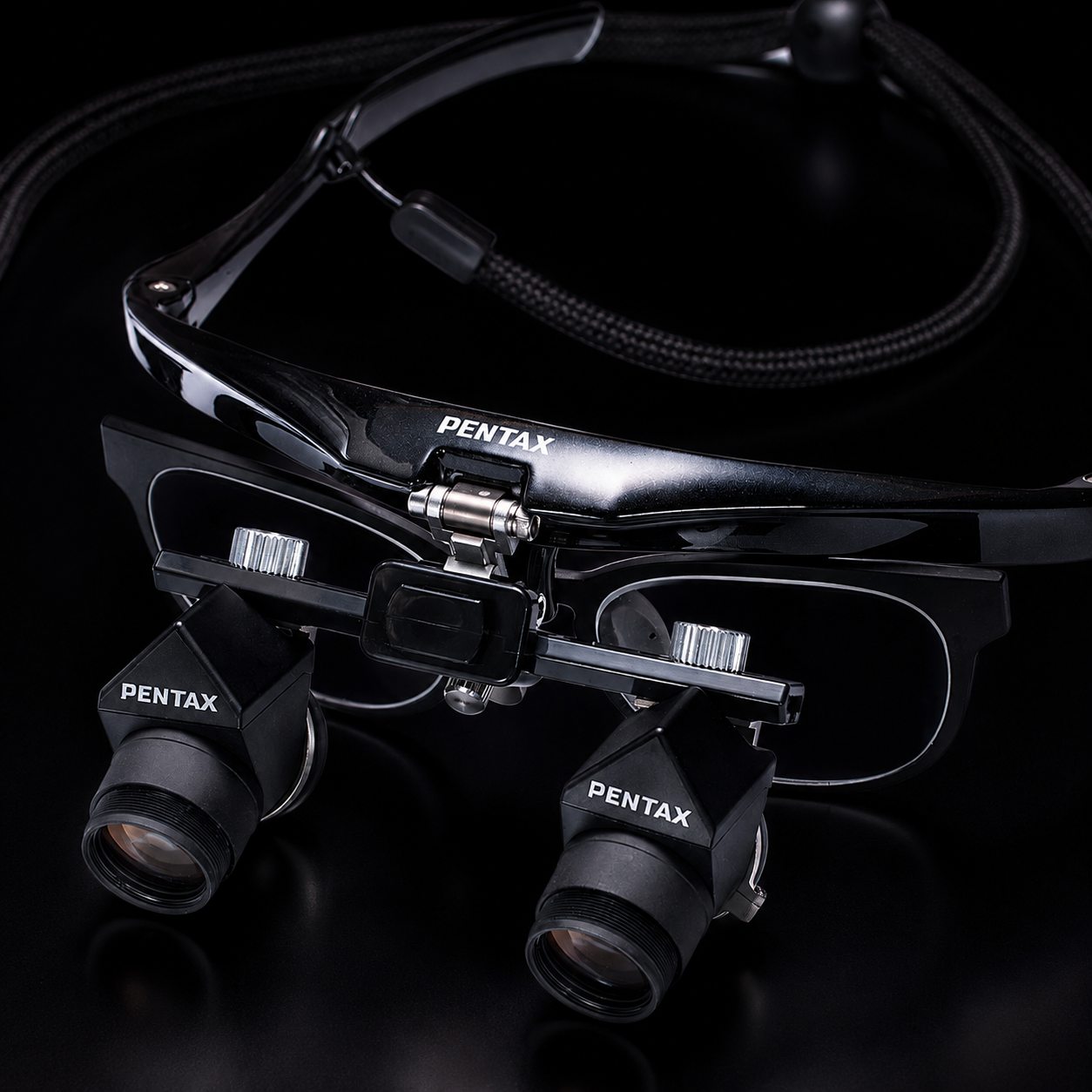

Protective and prescription lenses
Protective lenses shield your eyes and the optics. A prescription insert, or your own glasses underneath, carry your correction.
Optional
Not sure what to adjust? Ask for a fitting check →
Accessories
What works with your pair
Every option clips to the same frame, so you can add light or change lens options later without a new pair.
Illumination
Wireless LED headlight
Clips to the loupes and lights the field directly ahead of you, with complete freedom of movement.
Add a lightAsk about it →
Illumination
Wired LED headlight
Constant power from a beltpack for long lists. Already own a light you like? Brackets are available for other LED brands.
Add a lightAsk about it →
Lenses
Protective and prescription options
Protective lenses shield the optics; a custom prescription insert or your own glasses underneath carry your correction.
OptionalAsk about it →
Support
Here when something's not quite right
A slipping nose pad, a headlight question, an adjustment you'd like checked: tell us and the UK team will come back to you. Your passport reference travels with the message, so there's no need to explain your setup.
Prefer to email?
Write to info@pentaxloupes.com and quote your reference .
Thanks, we've got it
The UK team will come back to you by email.
Good things are worth sharing
Know someone who'd like to see for themselves?
Your invitation link opens a short page where a colleague can request their own demonstration and fitting. It carries your name and nothing else: your setup and contact details stay private.
We'll arrange a demonstration with them in the UK, the same way we did with you.
Your invitation link
Send it in a message or an email, or let a colleague scan the code.
Or let them scan thisPoint a phone camera at the code and the invitation opens.
